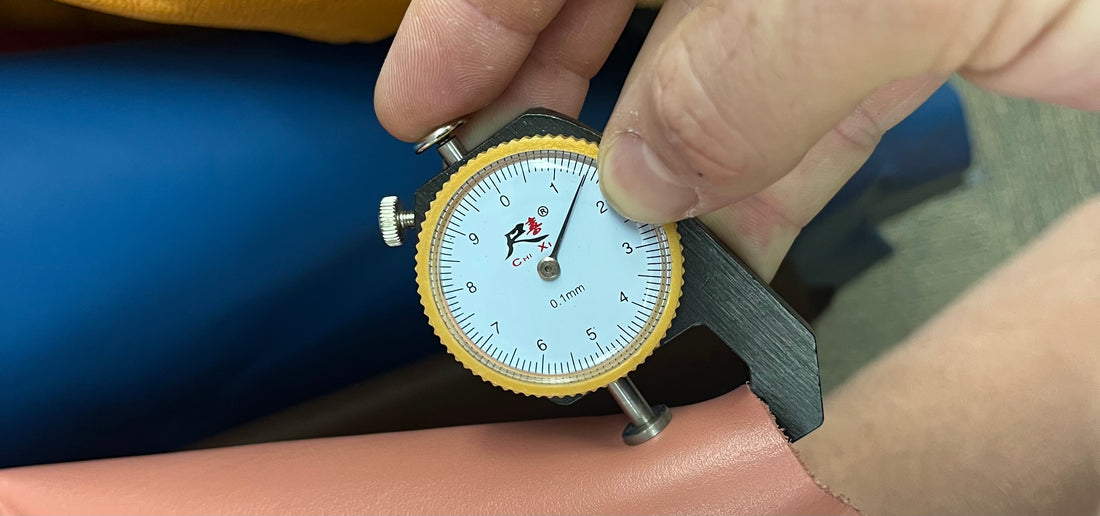

Leather thickness gauge

Leather Weight/Thickness Conversion Chart

How do you measure the thickness of leather?

In the Canada and the USA, leather thickness is commonly expressed in ounces. This leather measurement specifies thickness rather than weight in the conventional sense. If you are purchasing from Canada or the USA, it is essential to understand ounce measurements because it is necessary to have the appropriate thickness of leather for a specific job.
Each ounce of leather is how thick?

0.4mm, or 1/64 of an inch, is equal to one ounce of leather. 1.6mm or 1/16 of an inch is therefore equal to 4 ounces, and so on. For quick conversions, see our leather thickness conversion chart below. Please note that the thickness of each piece of leather varies somewhat over the entire hide; the chart below represents this variation.



Millimeters Thickness Inch Thickness Ounce Thickness Leathers by Weight
.8 – 1.2 mm 1/32" – 3/64" 2 - 3 oz Shop 2-3 oz
1.2 – 1.6 mm 3/64" – 1/16" 3 - 4 oz Shop 3-4 oz
1.6 – 2.0 mm 1/16" – 5/64" 4 - 5  oz Shop 4-5 oz
2.0 – 2.4 mm 5/64" – 3/32" 5 - 6 oz
2.4 – 2.8 mm 3/32" – 7/64" 6 - 7 oz
2.8 – 3.2 mm 7/64" – 1/8" 7 - 8 oz
3.2 – 3.6 mm 1/8" – 9/64" 8 - 9 oz
3.6 - 4.0 mm 9/64"– 5/32" 9 - 10 oz
4.0 – 4.4 mm 5/32" – 11/64" 10 - 11 oz
4.5 - 5.4mm 1/4" - 14/64" 12 - 13 oz
5.5 - 6.4mm 15/64" - 19/64" 14 -15 oz
6.5 - 7.4mm 20/64" - 5/8" 16 - 17 oz
